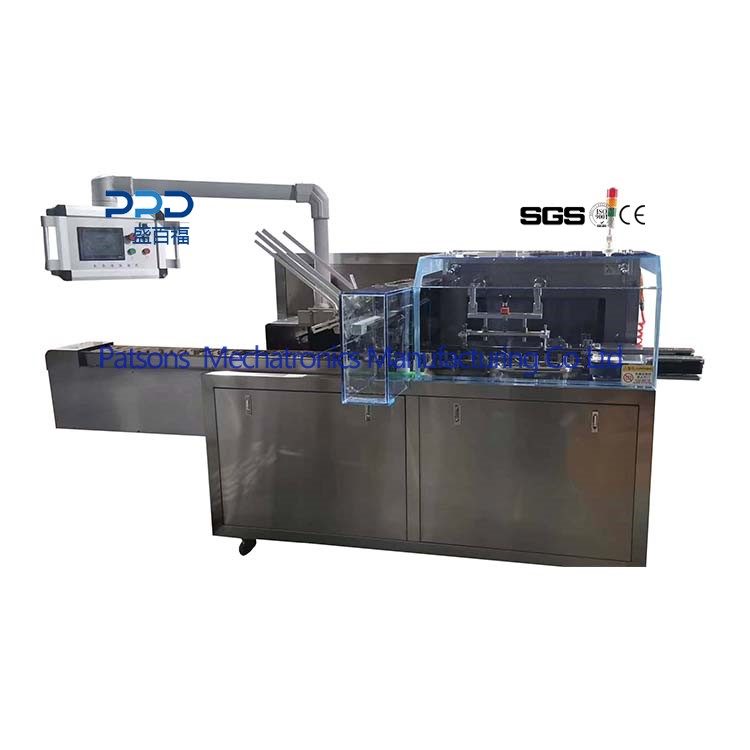

Cooling patch cartoning machine is mainly used for automatic packaging of cooling patch and collation 5 bags into carton. The carton is automatically opened and transported, the materials are automatically loaded into the carton and the complicated packaging process.The outside part of the machine is all made of high-quality stainless steel cover.The transmission part is designed with overload protection function, and there is an emergency stop device.
Features:
1. Machine adopts automatic feeding, open carton, into carton, sealing carton and output etc packaging form
2. Machine works with touch screen, PLC programmable control system, man-machine interface display operation,simple in operation.
3. Photoelectric eye automatic detection and tracking system, no product does not suck the carton, to maximize the saving of packaging materials.
4. Automatic show cartoning speed and counting.
Main Data:
Name:Cooling Patch Cartoning Machine
Model:PPD-CM120
Carton size:L(80-190) x W(20-90) x H(20-50)
Available paper:250—400g/m2
Speed:40-60 ctns/min
Voltage:220V/380V,50-60Hz
Power:1.5kw
Air supply:≥0.6MPa
Machine size:3400X1300X1800mm
Weight:1200kg
