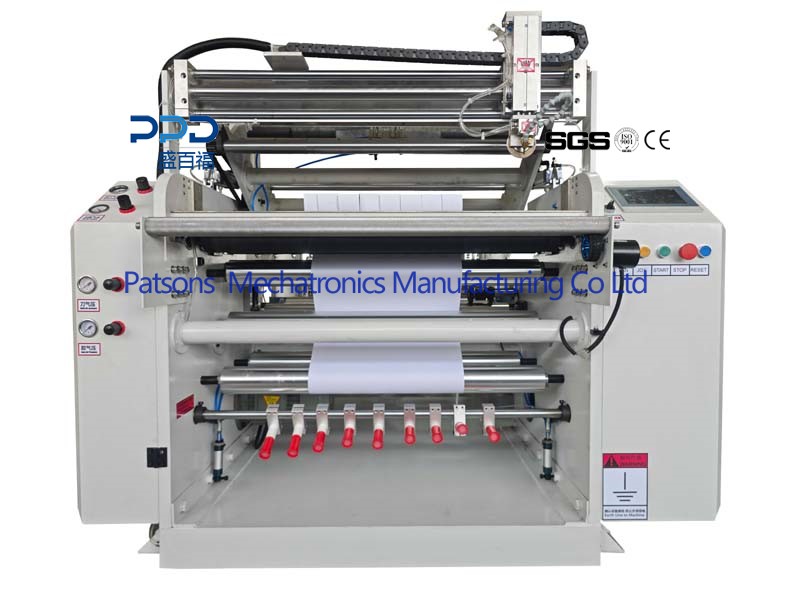

Cash roll slitter rewinder

This model is with PLC programmable logic control,LCD touch screen monitoring for simple operation,less label involved.

It is automatic jumbo roll loading,automatic paper feeding for rewinding,automatic stop when reach length setting.

Ideal for thermal paper cash roll,ATM roll,POS roll,plotter roll,lottery roll,medical report roll,ECG roll etc.

Main specification:

Master reel  width:500/700/900/1000mm

Master reel ID:3''

Master reel OD:1200mm

Rewinding roll width:minimum 20mm

Rewinding roll ID:12.7mm,15mm,25mm,38mm

Rewinding roll OD:180/200/300mm

Speed:max 168m/min

Weight:1.1Ton

Volt:220/380/415/450v,3phase
