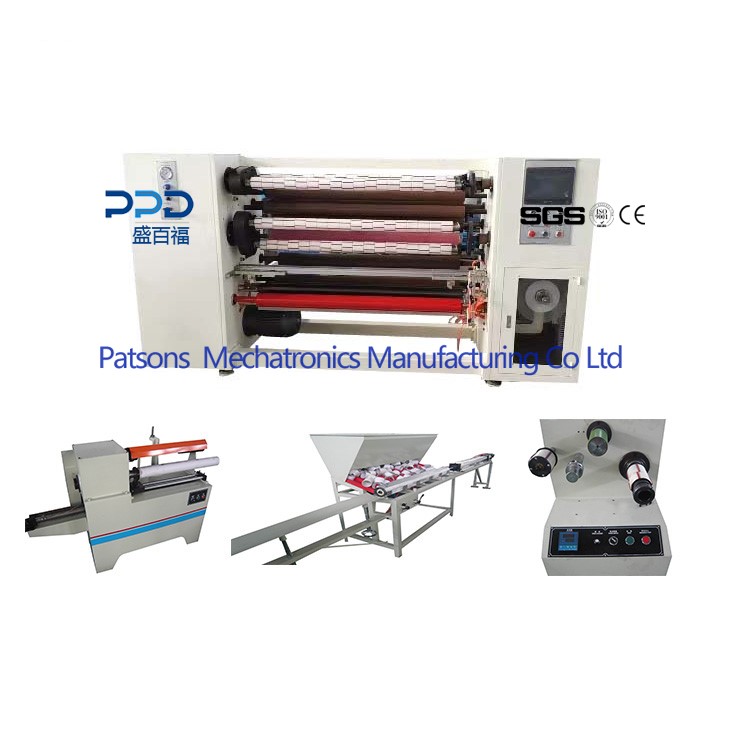

BOPP Adhesive Tape Slitting Machine With Auto Label Sticker
Bopp adhesive tape slitting machine with auto label sticker is the most ideal machine for adhesive tape slitting and rewinding.
This set of machine included: tape slitting and rewinding machine, paper core cutting machine, paper core loading machine and rewinding machine.
Features:
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. PLC control system with touch screen operation.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. Auto label stciker functions after rewinding.
Main Data:
Jumbo roll width :max1600mm
Jumbo roll outer diameter :max800mm
Rewind roll outer diameter :max180mm
Slitting width :12-1600mm
Rewind paper core :3inch
Slitting blade:razor knife
Machine speed:max180m/min
Power :380 50Hz 3Phase
Air compressor (customer prepare) :5KG
Machine packing size:3210*2185*1900mm，1885*1730*1810mm
Weight:1800kgs
This set of machine included: tape slitting and rewinding machine, paper core cutting machine, paper core loading machine and rewinding machine.
Features:
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. PLC control system with touch screen operation.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. Auto label stciker functions after rewinding.
Main Data:
Jumbo roll width :max1600mm
Jumbo roll outer diameter :max800mm
Rewind roll outer diameter :max180mm
Slitting width :12-1600mm
Rewind paper core :3inch
Slitting blade:razor knife
Machine speed:max180m/min
Power :380 50Hz 3Phase
Air compressor (customer prepare) :5KG
Machine packing size:3210*2185*1900mm，1885*1730*1810mm
Weight:1800kgs
