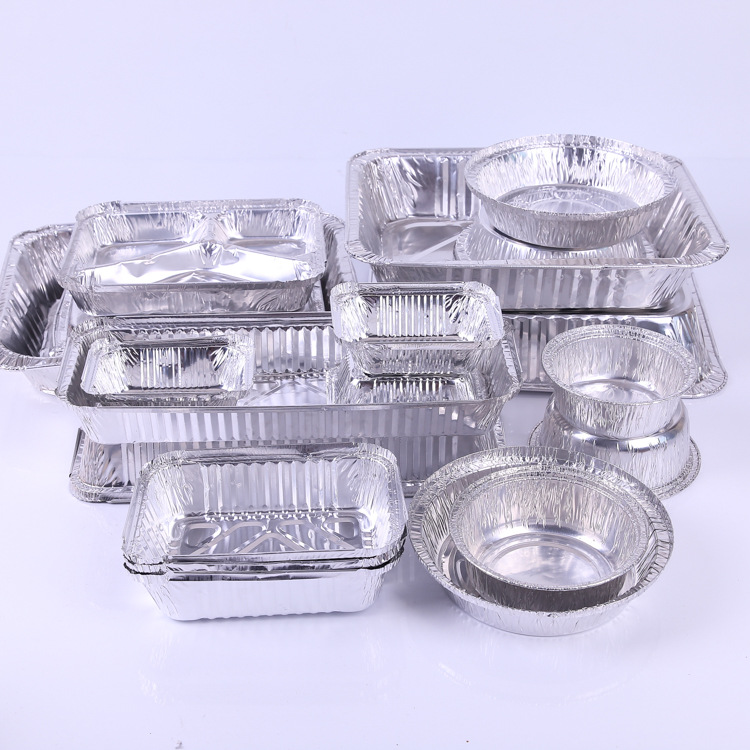

Aluminium Foil Tray Production Machine

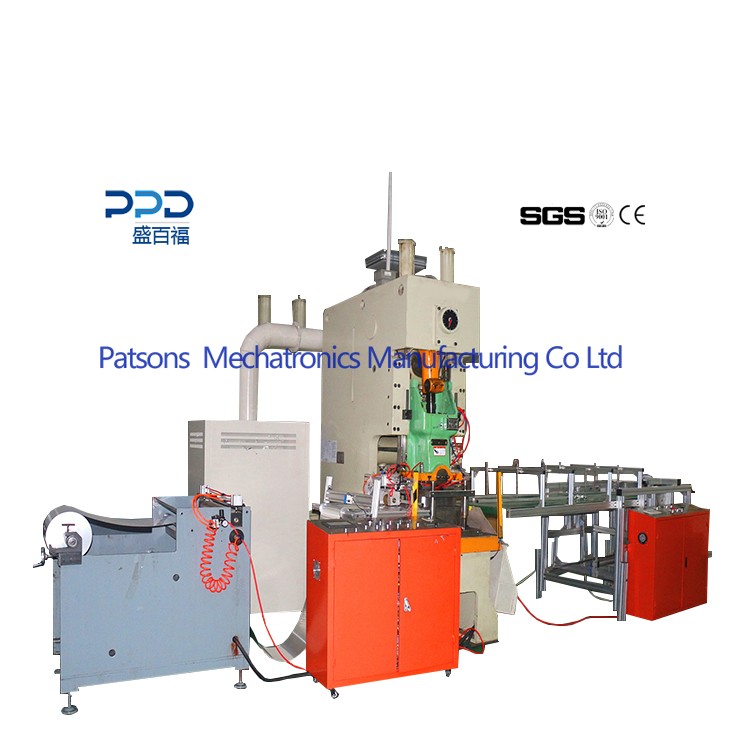

Fully automatic aluminum foil tray making machine is a production line,it is included feeding machine, high accuracy press, scrap collecting system, stacker.
Machine adopts PLC as the controlling system,the feeding length, producing speed and other parameter are easily set, this integration of Gas& Electrical centralized control, automated production.
The feeding is controlled by stepper system, the feeding length is accurate And can be adjusted freely from 20m to 999m.
Machine adopts PLC as the controlling system,the feeding length, producing speed and other parameter are easily set, this integration of Gas& Electrical centralized control, automated production.
The feeding is controlled by stepper system, the feeding length is accurate And can be adjusted freely from 20m to 999m.
Feeding Machine:
|
Max.Width of Roll |
350mm |
500mm |
650mm |
750mm |
|
Max.Unwind Roll Diameter |
600mm |
600mm | 600mm | 600mm |
|
Feeding Speed |
0-35m/min | 0-35m/min | 0-35m/min | 0-35m/min |
|
Feeding Length |
20-999mm |
20-999mm |
20-999mm |
20-999mm |
|
Feeding Accuracy |
±0.3mm |
±0.3mm |
±0.3mm |
±0.3mm |
|
Voltage |
220/380/415 V |
220/380/415 V |
220/380/415 V |
220/380/415 V |
High Accuracy Press:
| Model | PPD-45T | PPD-63T | PPD-80T | PPD-110T | |
|
Nominal Pressure |
450KN |
630KN |
800KN | 1100KN | |
|
Slide Block Strok |
100-260mm |
120-260mm |
140-260mm |
150-260mm |
|
|
Slide Stroke Per Minutes |
70-50/min |
70-50/min |
60-45/min | 50-40/min | |
|
Maximum Die Set Height |
270-400mm |
310-450mm |
325-450mm |
345-500mm |
|
|
Die Set Height Adjustment |
60mm |
70mm |
80mm |
90mm |
|
|
Slide Bottom Size |
410*340mm |
480*400mm |
560*460mm |
630*520mm |
|
|
Stemhole Size |
φ60*60mm |
φ60*65mm |
φ60*75mm |
φ60*85mm |
|
|
Bolster Surface Size |
|
870*520/1000*800mm |
1000*600/1200*800mm |
1100*680/1300*800mm |
|
|
Total Power |
5.5kw |
5.5-7.5kw | 7.5-11kw | 11kw | |
| Voltage | 220/380/415V |
220/380/415V |
220/380/415V |
220/380/415V |
